RUSHFPV 3.3GHz Video Receiver - Crystal Clear Streaming & Enhanced Range!
Unleash your inner wanderer with this extraordinary piece – a carefully curated blend of timeless charm and modern intrigue. Imagine sinking into its luxurious embrace, a silent invitation to create unforgettable memories. It’s not just an object; it’s a story waiting to unfold, a secret whispered only to those who truly appreciate the beauty of the unexpected. Let it transform your space and ignite your soul.
Note: this is pre-order, the expected delivery date will be around end of August.

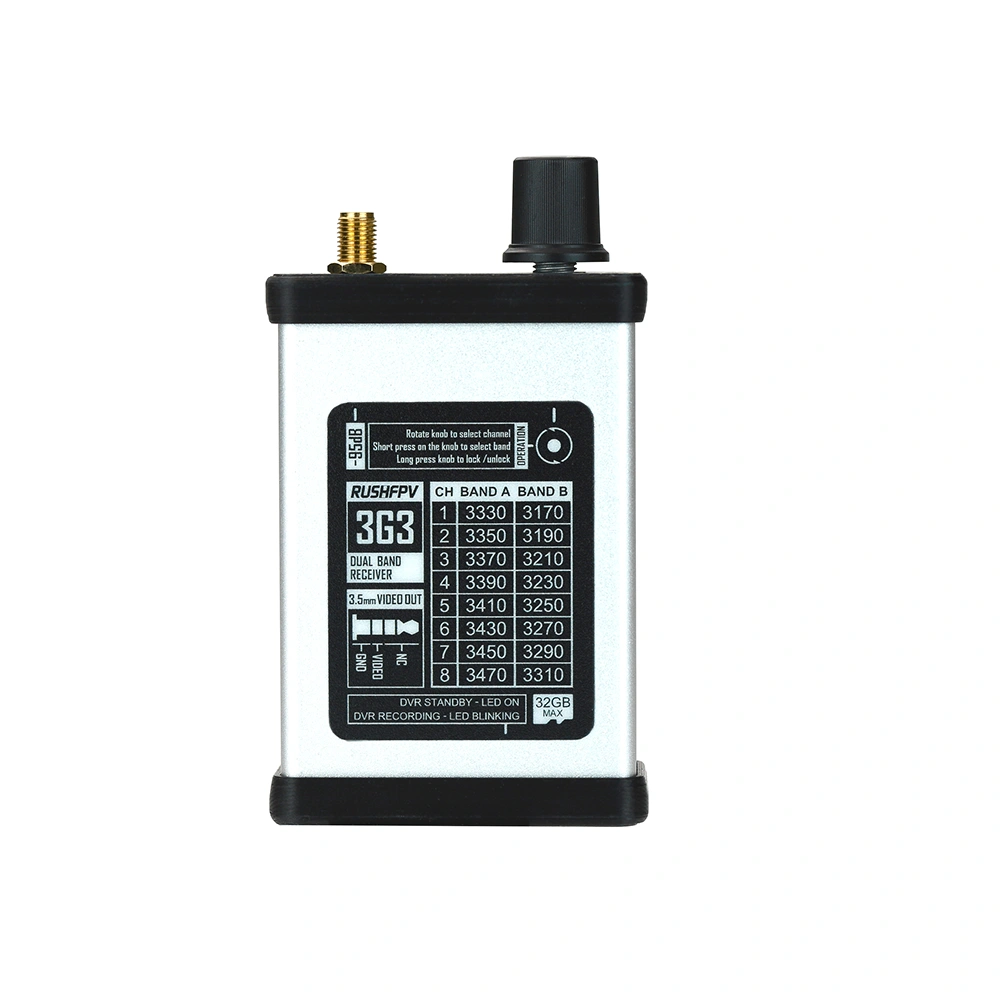

RUSHFPV 3.3GHz Video Receiver with High-Gain Directional Antenna and Optional DVR
The RUSHFPV 3.3GHz Video Receiver is designed for uncompromising performance and reliability. This state-of-the-art receiver features a customized digital PLL circuit and chip-level integration, ensuring no frequency drift and exceptional sensitivity up to -95dBm across all channels.
Key Features:
- Customized Digital PLL Circuit: Achieve stable, drift-free performance with our high-integration chip design.

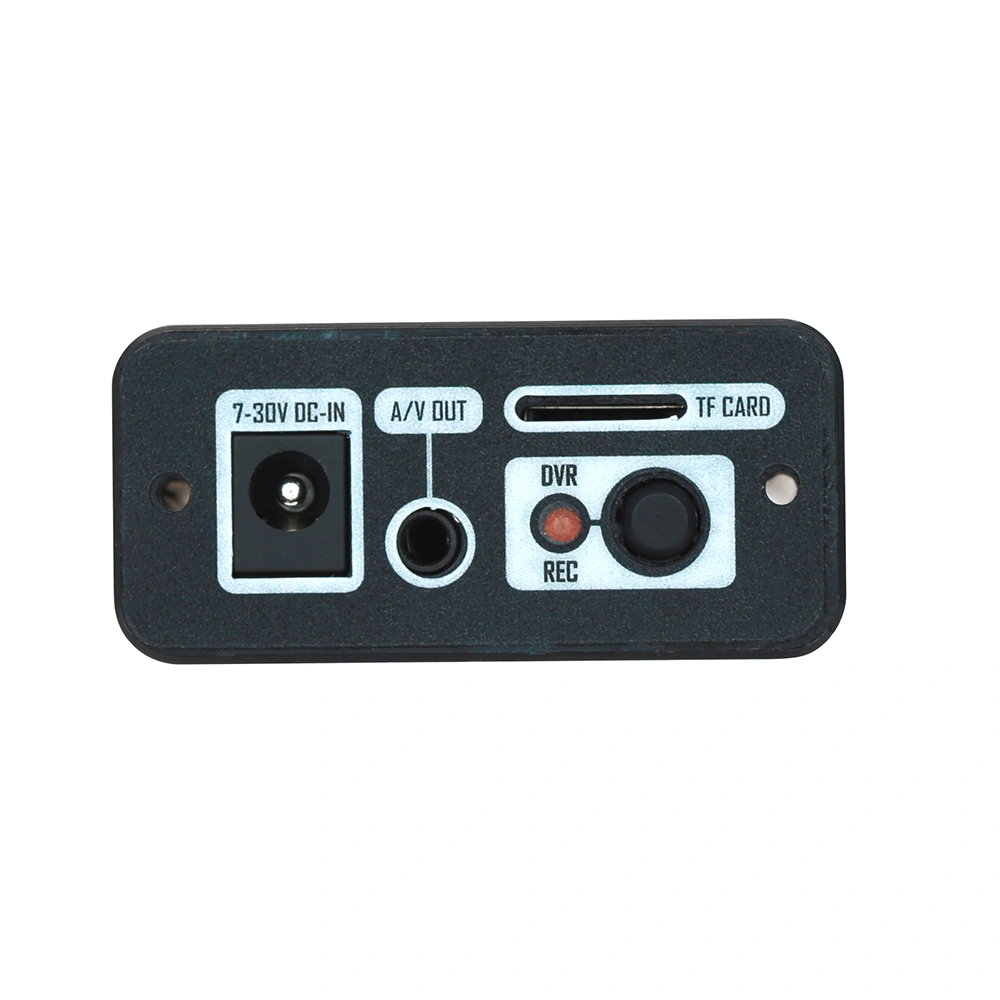

- Optional Built-in DVR Module: Record your flights effortlessly with the optional CVBS 30fps DVR.

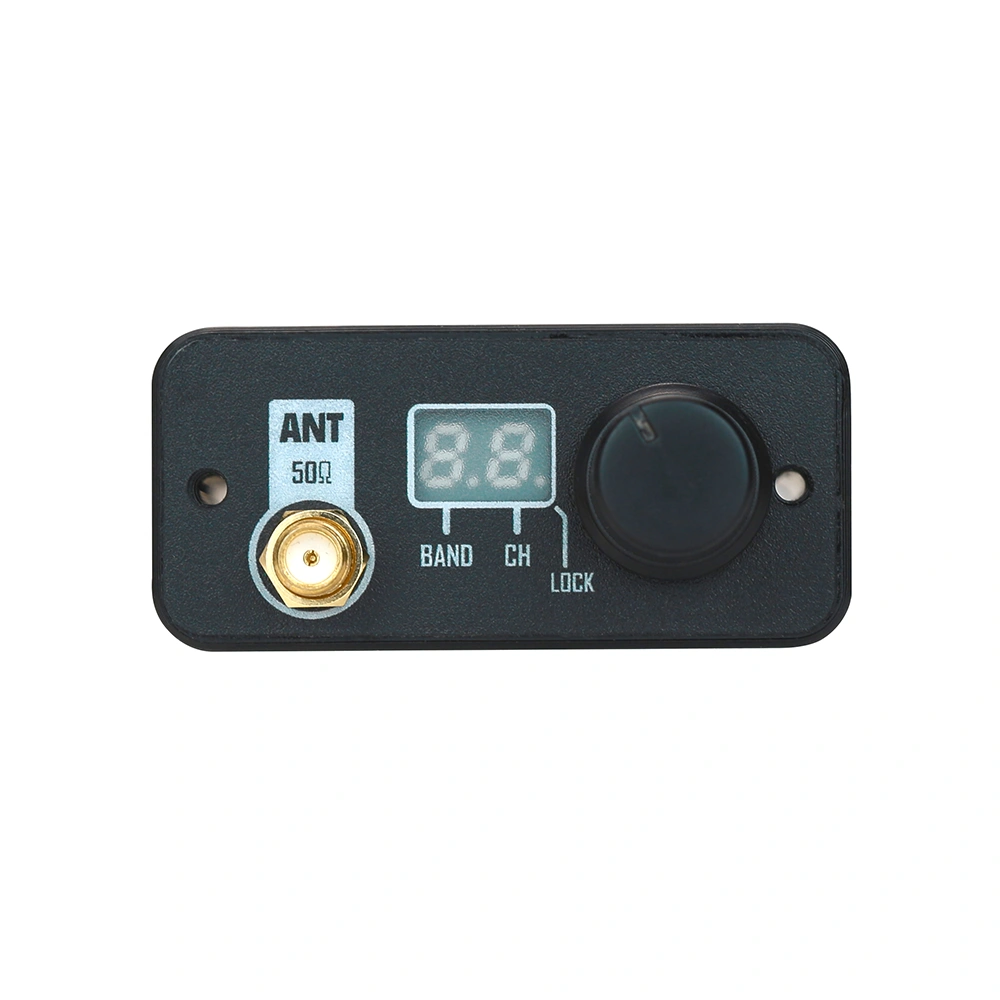

- Rugged Aluminum Alloy Housing: Durable construction with digital display and easy-to-use knob.
- High-Gain Directional Antenna: The multi-unit antenna provides a narrow beam angle and an impressive 15.8 dBi gain.
- Complete Quality Control: Thorough QC for all vRX and antenna production ensures top-notch reliability.
Specifications:
VRX Module:
- Video Output: CVBS NTSC/PAL
- Frequency: BAND-A 3330-3470MHz (8 channels), BAND-B 3170-3310MHz (8 channels)
- Sensitivity: <-95dBm
- DVR: CVBS 30fps (Optional)
- DC Input: 7-30V
- Connector: SMA
- Dimensions: 58x27x101mm
- Weight: 103g

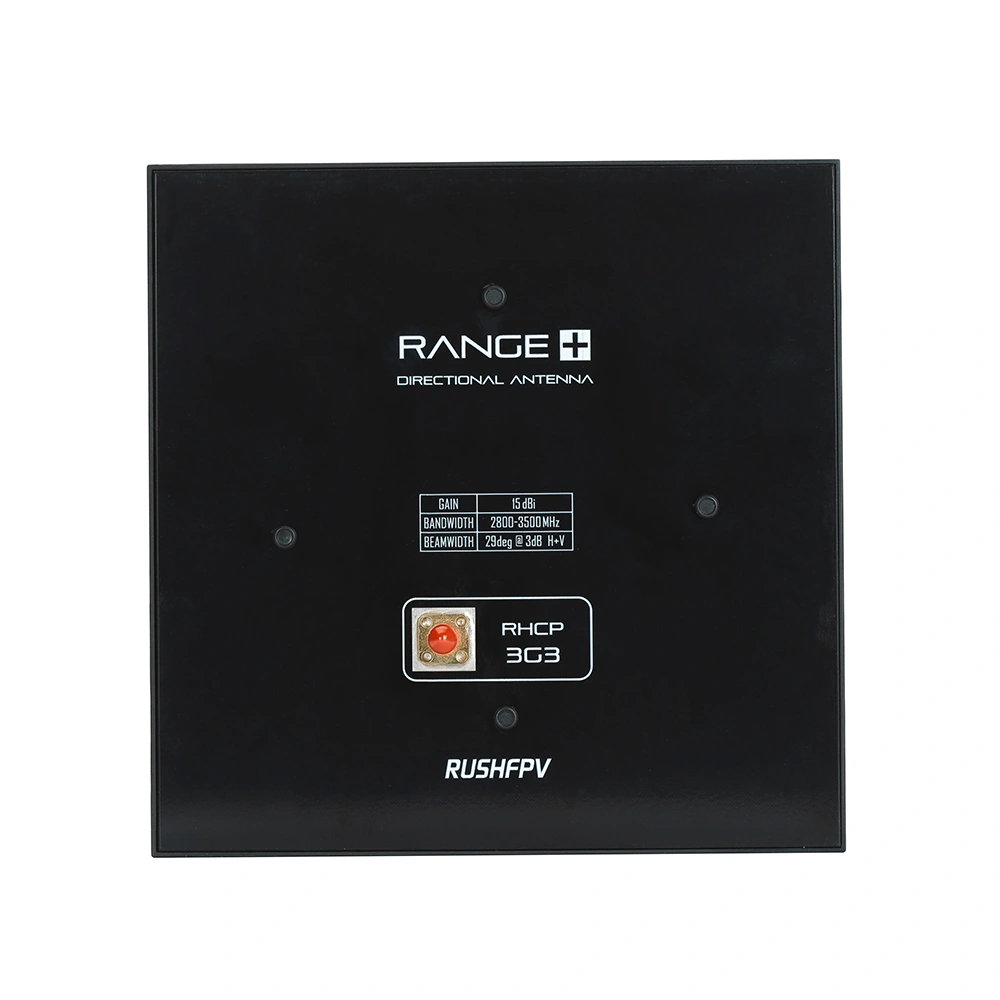

Directional Antenna:
- Polarization: LHCP/RHCP
- Bandwidth: 3150-3500 MHz
- Beamwidth: 29 degrees @3dB H+V
- Gain: 15.8 dBi
- V.S.W.R: <1.3
- Cable: RG178 (Adapter Cable)
- Connector: SMA
- Dimensions: 174x174x16mm
- Weight: 196g
Package Includes:
- 1x 3.3GHz Video Receiver
- 1x 15.8 dBi Patch Receiving Antenna
