Product Detail

Note: this is pre-order, the expected delivery date will be around end of August.

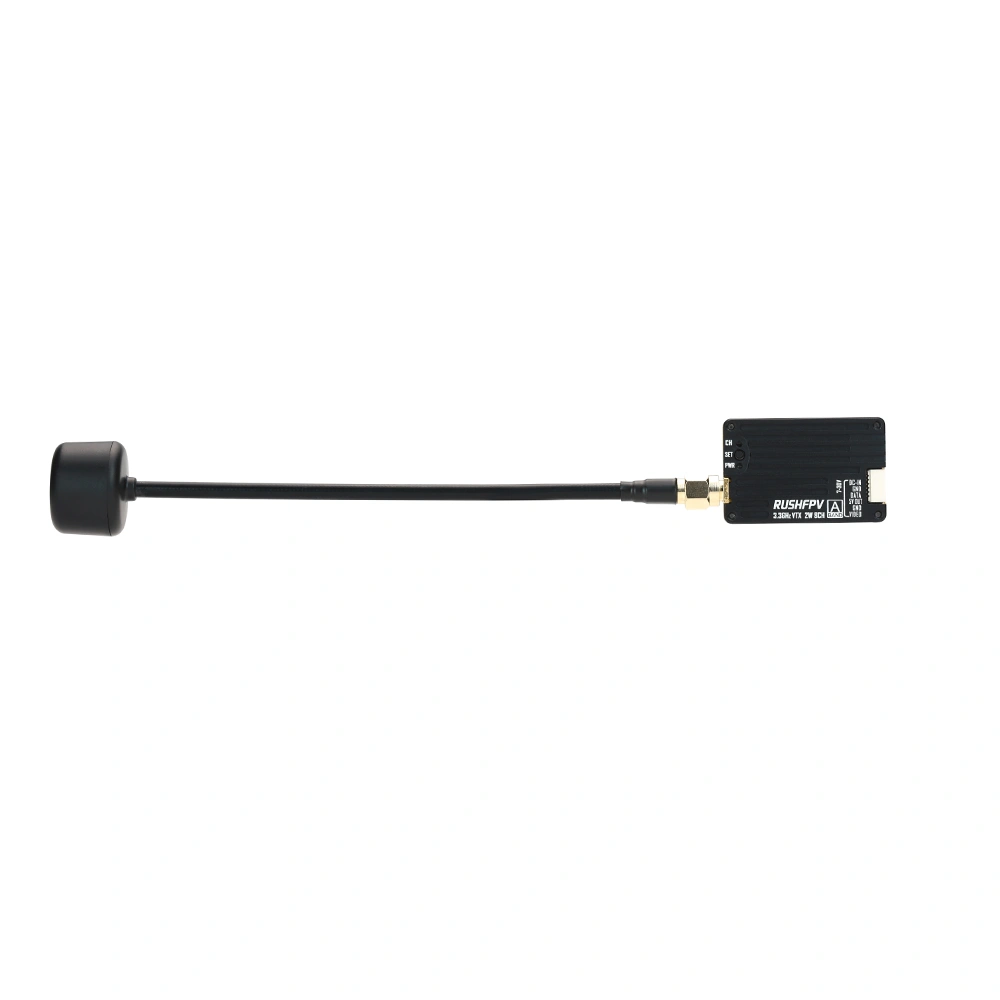

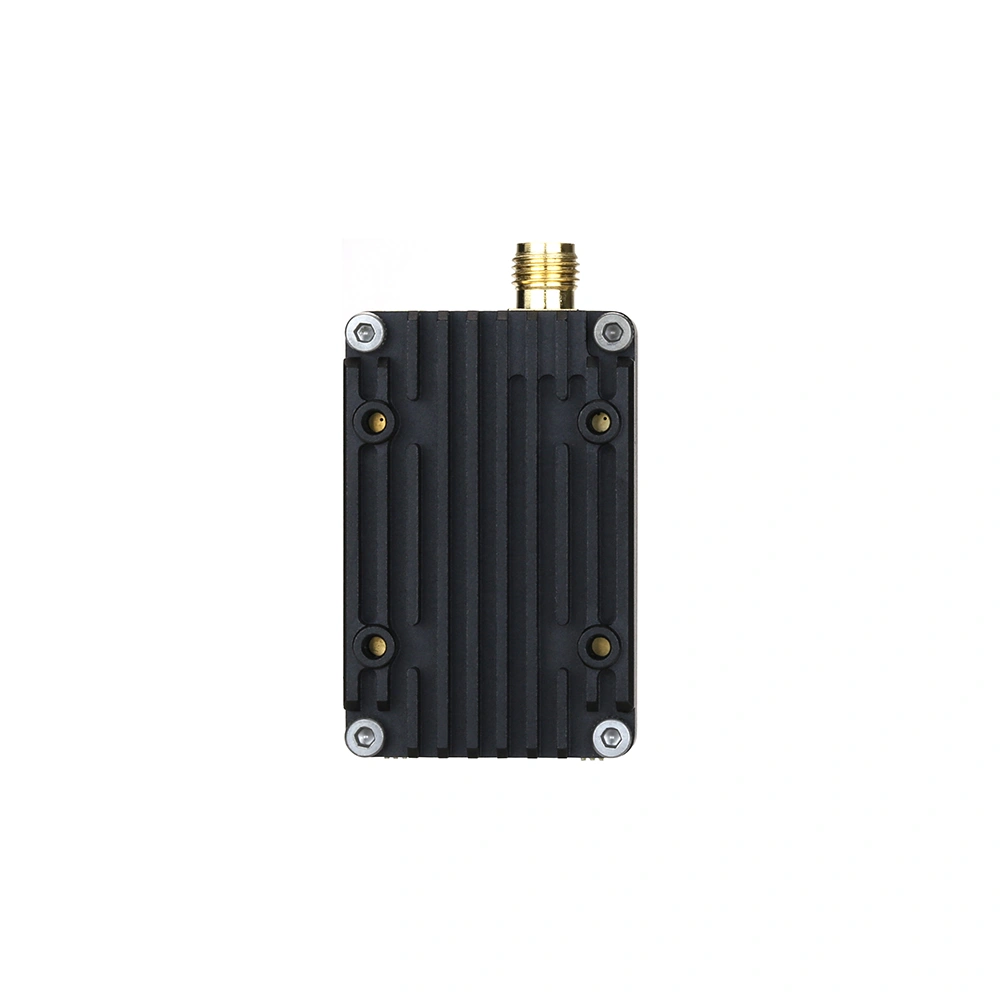

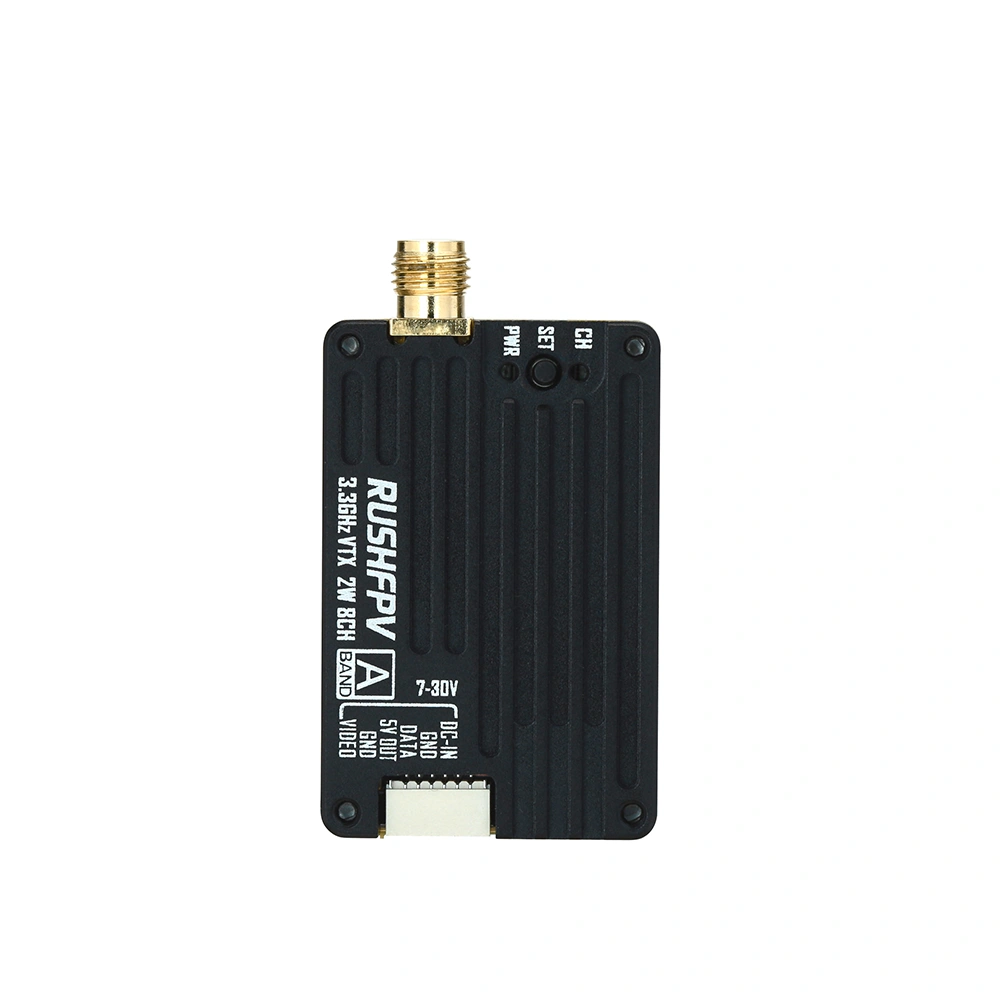

The RUSHFPV 3.3GHz 2W Video Transmitter is engineered for long-range FPV flights, offering compact size, durability, and reliable performance. Featuring a customized digital PLL circuit and high transmission efficiency, this VTX ensures no frequency drift and eliminates the need for fan cooling. With a maximum output power of up to 2.5W in environments with airflow, it is perfect for long-distance video transmission.

Key Features

• Long-Range Capability: Ideal for extended flights, providing reliable video transmission over long distances.
• Digital PLL Circuit: Customized integration at the chip level ensures stable performance without frequency drift.
• High Transmission Efficiency: No fan cooling required, with a maximum output power of up to 2.5W.
• Customized Circular Polarized Antennas: Designed for optimal performance with LHCP/RHCP polarization and high durability.
• Quality Control: Comprehensive QC processes for both VTX and antenna production guarantee top-notch quality.

Specifications

• Video Input: CVBS NTSC/PAL
• Frequency:
  • BAND-A: 3330-3470MHz (8 channels)
  • BAND-B: 3170-3310MHz (8 channels)
• RF Power: >2W
• Protocol: IRC Tramp
• DC Input: 7-30V
• Connector: SMA
• Dimensions: 40.5 x 26 x 8.5 mm
• Weight: 16.5g

Antenna Specifications

• Polarization: LHCP / RHCP
• Bandwidth:
  • A-Band: 3330-3470MHz
  • B-Band: 3170-3310MHz
• Gain: 2dBi
• V.S.W.R: <1.5
• Cable: RG402 Heavy Duty
• Connector: SMA
• Dimensions: 23.6 x 165 mm
• Weight: 13g

Note: For optimal performance, BAND A and BAND B operate on different transmitter hardware models. Ensure correct selection based on your requirements. The antennas are not interchangeable between BAND A and BAND B.

Package Includes

• 1 x 3.3G 2W Video Transmitter
• 1 x Circular Polarized Antenna
